Panel Computers

Panel computers are programmable systems suitable for measurement and control, targetting especially industry applications.

current products

Our current solutions are based on these panel computers:

PCM-7

PCM-7

Mikroprocesor: Vybrid VF6 (Asymmetric Dualcore ARM Cortex A5/M4)
Displej: passive LCD, 800 x 480 bodů, color TFT.
Uživatelský vstup: 4 keys + reset, touchscreen.
Komunikace: 8 digital inputs 24V/0,05A, 4 digital outputs 24V/0,7A, 4 relay outputs 120V/0,5A, 4 analog inputs for tensometers, 2 analog outputs 10V/0,05A, 2 serial ports RS232, 1 serial port RS485, CAN 2.0 A/B, Ethernet 10/100Mb, USB HOST, USB OTG, slot na SDmicro, speaker, microphone.
Rozměr: 222 x 116 x 47 mm.
Operační systém: Embedded Linux (A5 core), MQX (both A5/M4 cores).

OBSOLETE products

This section contains information about panel computers, which are no longer used in new industrial applications. We however still provide service for already installed systems.

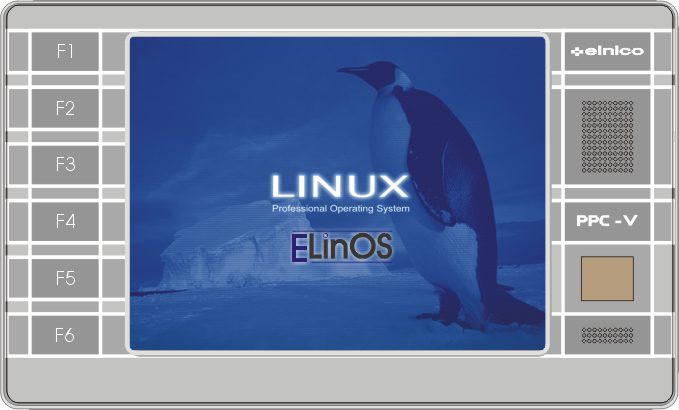

Linux-based panel computer PPC-5

PPC-5

Microprocessor: SH4, 32bit.
Display: pasive, LCD, 320 x 240 px, color TFT.
User input: 6-24 keys + reset, touchscreen.
Communication: 12 digital inputs 24V/0,01A, 12 digital outputs 24V/0,7A, 2 serial ports RS485/RS232, 2 ports CAN 2.0 A/B, Ethernet 10/100Mb, USB 1.1 HOST, memory slots SD/SDmicro, speaker, microphone, line IN, line OUT, 24-bit A/D convertor.
Size: 198 x 118 x 25 mm.
Operating system: Sysgo Linux.

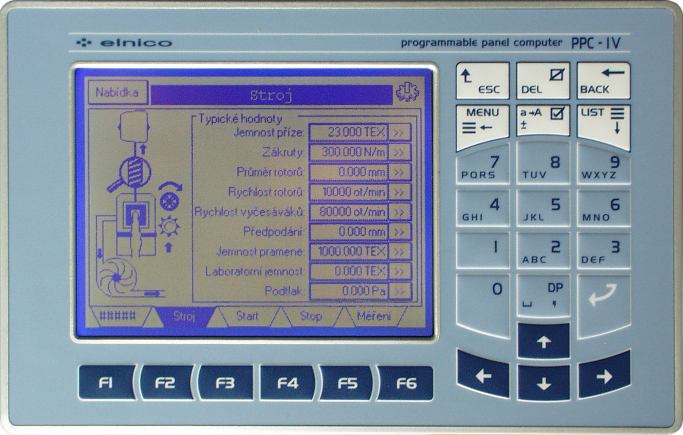

Panel computer PPC-4

PPC-4

Microprocessor: FUJITSU, 32bit.
Display: pasive, LCD, 320 x 240 px, monochromatic.
User input: 28 keys + reset, touchscreen.
Communication: 12 digital inputs 24V/0,01A, 12 digital outputs 24V/0,7A, 3 serial ports RS485/RS232, 2 ports CAN 2.0 A/B, Ethernet 10Mb, 24-bit A/D convertor.
Size: 230 x 148 x 47 mm.

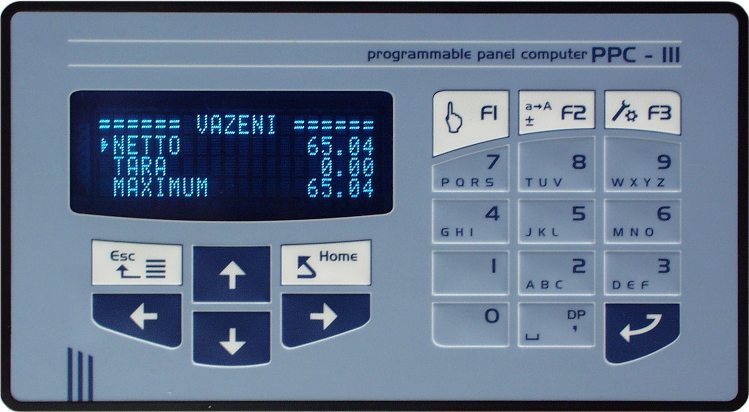

Panel computer PPC-3

PPC-3

Microprocessor: FUJITSU, 32bit.
Display: active, raster, 4 x 20 segments, blue-green.
User input: 21 keys + reset.
Communication: 12 digital inputs 24V/0,01A, 12 digital outputs 24V/0,7A, 3 serial ports RS485/RS232, 2 ports CAN 2.0 A/B, 24-bit A/D convertor.
Size: 185 x 105 x 41 mm.

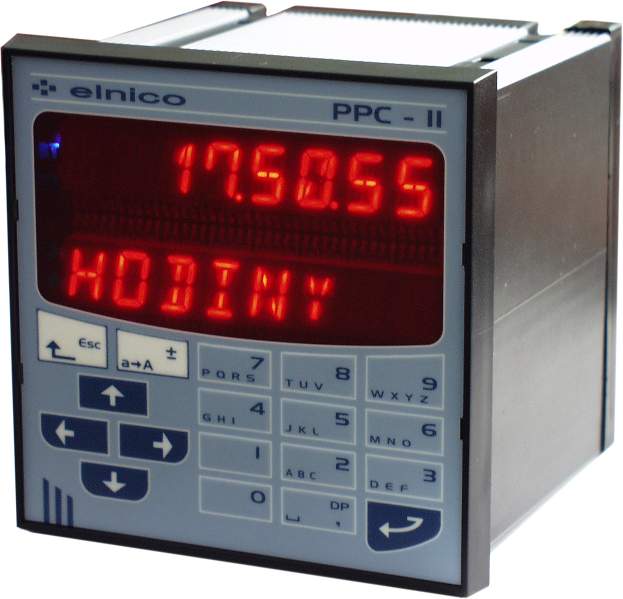

Panel computer PPC-2

PPC-2

Microprocessor: FUJITSU, 32bit.
Display: active, segment, 2 x 8 characters, red.
User input: 18 keys + reset.
Communication: 12 digital inputs 24V/0,01A, 12 digital outputs 24V/0,7A, 3 serial ports RS485/RS232, 2 ports CAN 2.0 A/B, 24-bit A/D convertor.
Size: 96 x 96 x 94 mm.

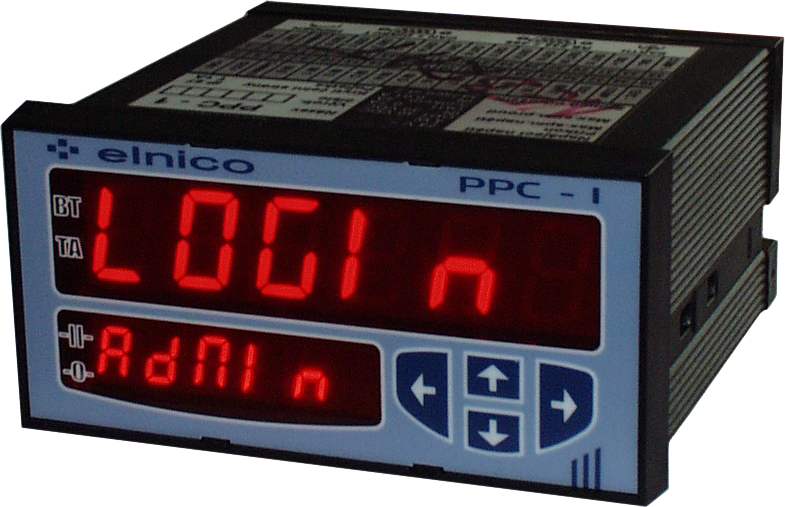

Panel computer PPC-1

PPC-1

Microprocessor: FUJITSU, 32bit.
Display: active, segment, 2 x 6 characters, red.
User input: 4 keys + reset.
Communication: 12 digital inputs 24V/0,01A, 12 digital outputs 24V/0,7A, 3 serial ports RS485/RS232, 2 ports CAN 2.0 A/B, 24-bit A/D convertor.
Size: 96 x 48 x 94 mm.

Panel computer PPC-0

PPC-0

Microprocessor: FUJITSU, 32bit.
Display: active, segment, 2 x 6 characters, red.
User input: 4 keys + reset.
Communication: 12 digital inputs 24V/0,01A, 12 digital outputs 24V/0,7A, 3 serial ports RS485/RS232, 2 ports CAN 2.0 A/B, 24-bit A/D convertor.

Further in this category:

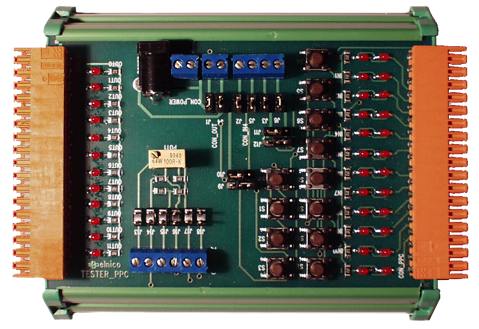

Elnico Tester for PPC-x panel computers testing

PPC-x Tester

Module used to test and debug applications on programmable panel computers PPC-1 to PPC-5. It can be connected to a PPC singly (for function debugging) or as an interlink in chain of PPCs (I/O states monitoring).

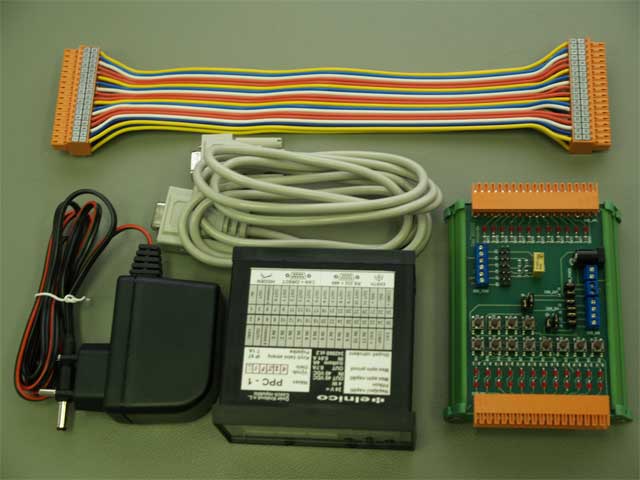

Starter Kit package for PPC-x panel computers

PPC-x Starter Kit

A compact collection of tools used to work with programmable panel computers from PPC-x series.

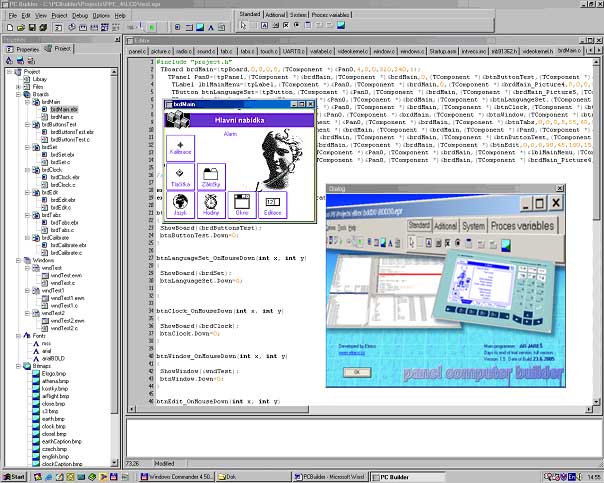

PCBuilder Development Studio

PCBuilder is a powerful development tool for design, implementation, debugging and maintenance of our panel computers software, useful for other devices with Fujitsu FR processors as well.

It is adapted especially to application development for our panel computers PPC-1 - PPC-4. It contains configurable source code editor, RAD WYSIWYG GUI designer, compiler, uploader and powerful debugger.

Softune compiler is required by PCBuilder.
